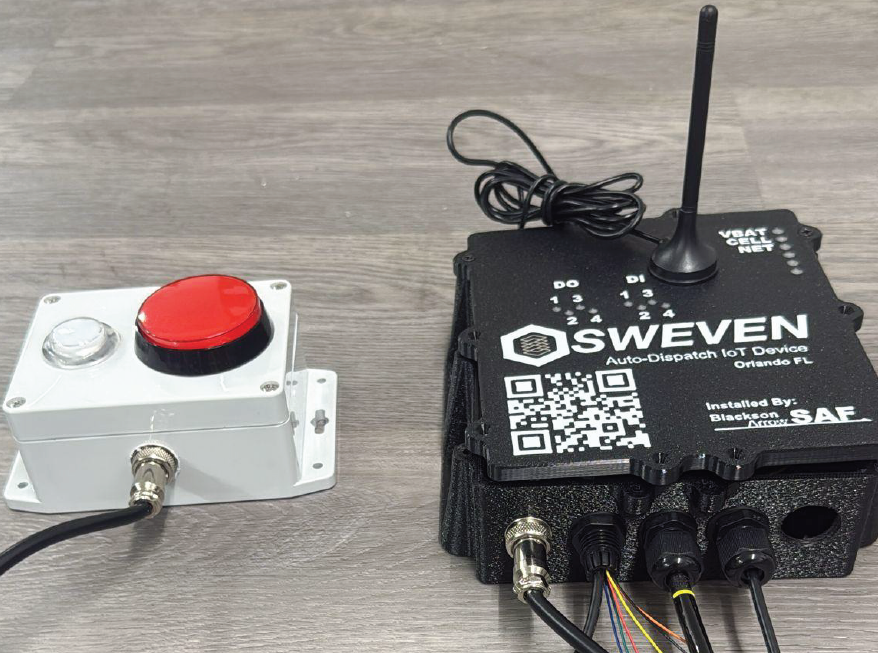

Follow these steps (no tools required):

• Check the cable connections.
• Make sure the antenna cable has the outer nut secured. If it isn’t, tighten it.
• Make sure the charger that supplies power is properly connected.
• Make sure the alarm cable is properly secured.

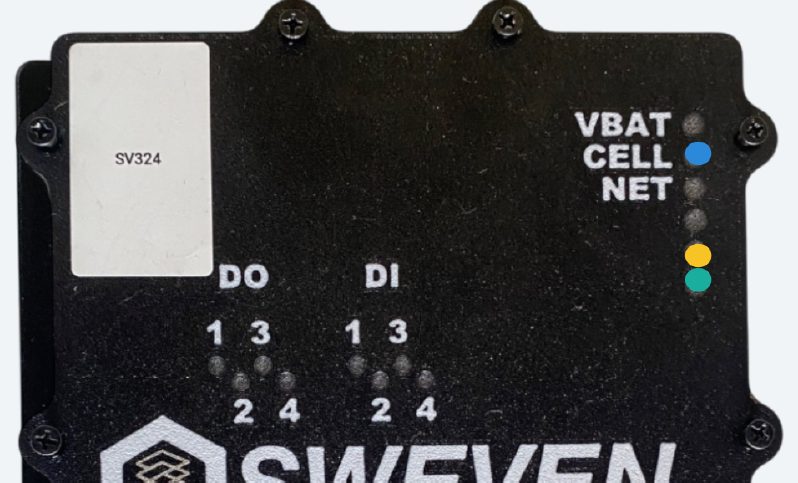

1. Inspect the black box LEDs

• Make sure all four LEDs are lit.
• You should see at least one LED of each color: blue, yellow, and green.
• If any LED is off or a color is missing, note which color is missing.
• If any of the LEDs are red, note their position starting from top to bottom.

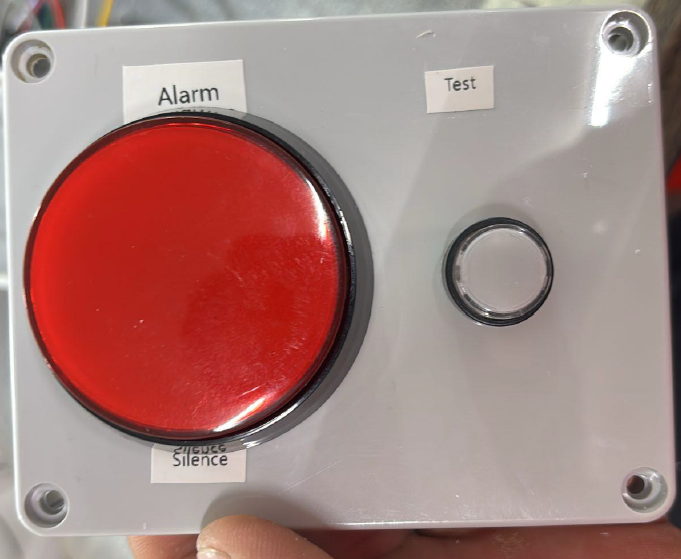

2. Test the Alarm Box Buttons

• White “Test” button: press it—it must light up and trigger a sound.
• Red button: check for cracks or looseness; it should feel solid and move smoothly.

3. Verify Dashboard Connection

• Open your device’s Dashboard in the app or browser.
• Confirm the device shows as Online.
• Ensure live data (readings, status) are appearing.
• Check that the last update timestamp is current.

4. Log Your Findings

• Record any issues (e.g. “Blue LED off,” “Test button didn’t sound,” “No data on Dashboard”).
• Send these details to your support team for next steps.
